The Ultra drive over spill containment berms provide containment for vehicles, drums, IBC's, frac tanks and other large containers.

The Ultra drive over berms are available with a low profile 4 inch foam wall model or a higher containment stake wall model with 12 inch high sidewalls.

No setup is required for these portable berms, making them easy to use.

Available drive over containment berm sizes range from 3'x3' to 15'x72'.

Drive Over Berm Optional Add-Ons for Heavy Vehicle Use:

Track Belts

30" wide sections of material that lie inside the berm and act as a buffer between a vehicles's tires and the berm. Track Belts come in pairs and will typically run the length of the berm's usable space.

Ground Tarps

The ground tarps go underneath the berm and are typically 1 to 4 feet larger than the berm itself. The tarps are made of an 18.5 oz/sq yard polyester blended PVC.

By placing the ground tarp down before you place the berm, you can prevent punctures, tears and rips from rocks or debris on the ground.

Ground Tarp Plus

Heavy duty ground tarp that is more tear and puncture resistant than the standard ground tarp.

The Ground Tarp Plus is designed for oil fields and other rocky areas where extra heavy duty protection is required.

The Ground Tarp Plus also an absorbent top layer designed for nuisance leaks, drips and spills.

Choose from the following Drive Over Berm Models:

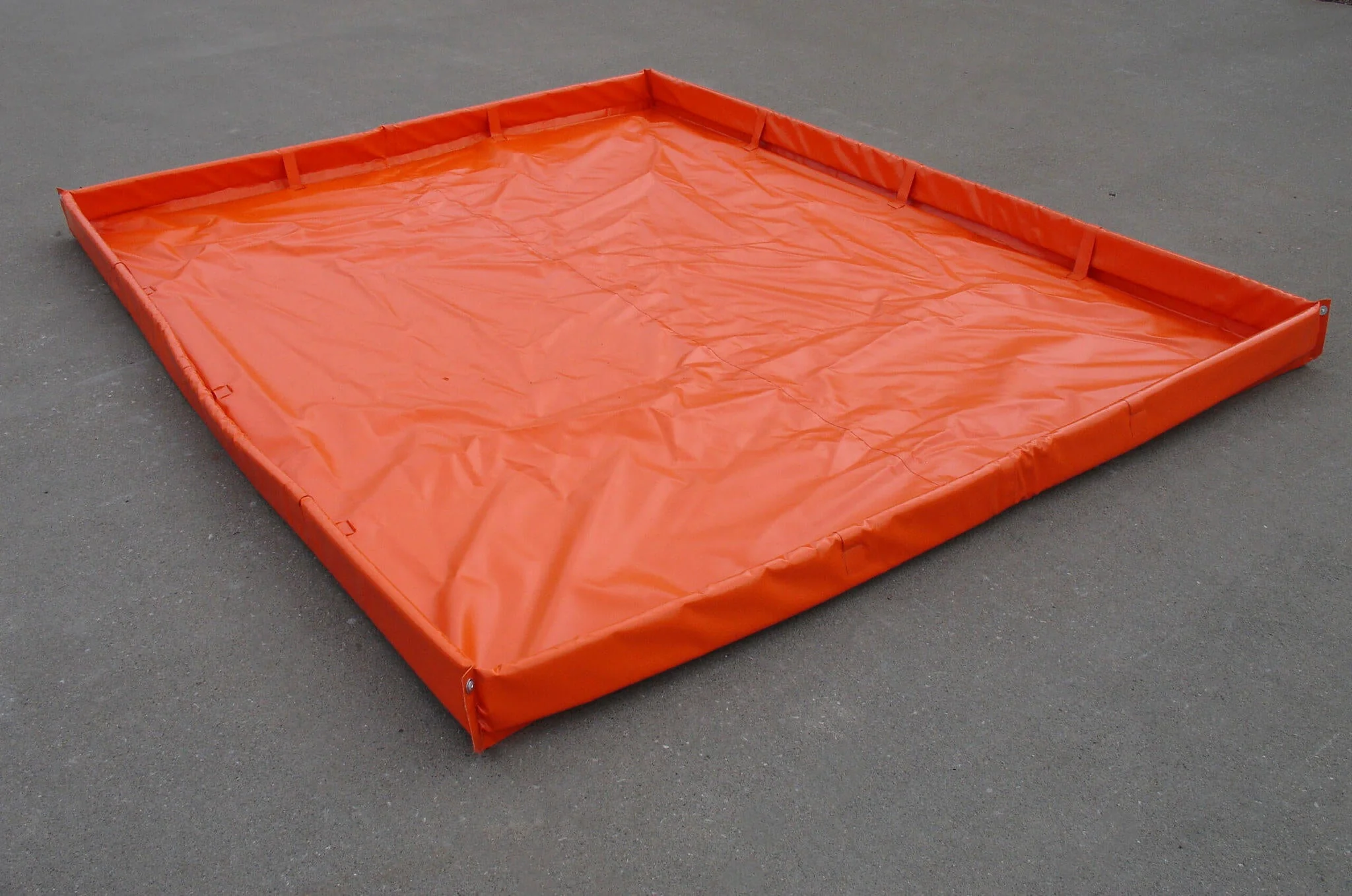

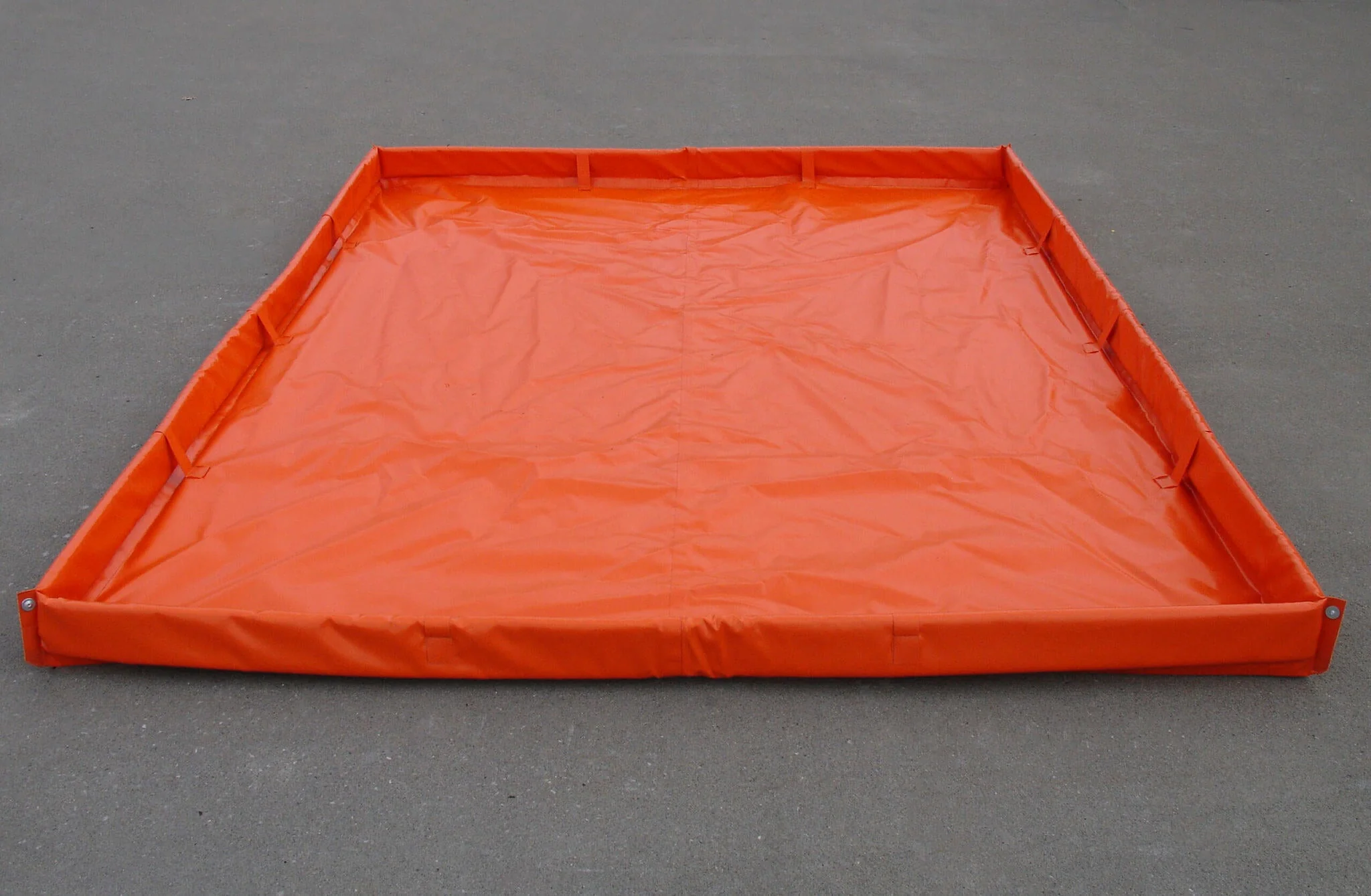

Foam Wall Model (4 inch sidewalls)

The low profile foam wall design allows vehicles to easily drive over the sidewalls without causing damage to the berm.

Available Sizes: 25 sizes from 3'x3' to 15' x 72'.

Foam Wall Plus Model (4 inch sidewalls / removable foam walls)

The foam wall plus model adds removable foam side walls. The removable foam sidewalls make it easier to repair or replace old or worn out foam walls.

Available Sizes: 8 sizes from 4'x4' to 12'x50'.

Stake Wall Model (12 inch sidewalls / 4 sided drive over walls)

The stake wall model provides higher spill containment capacity with 12 inch high sidewalls and features flexible polyurethane stakes that allow the sidewalls to spring into place automatically - even after being bent in either direction.

The stake wall model design makes it ideal for drums and trucks to roll over the walls without breaking their upright structure.

Available Sizes: 19 sizes from 4'x6' to 15'x66'

Drive Over Berm Model Comparison:

Foam Wall - 4 inch high sidewalls / drive over foam walls.
Foam Wall Plus - 4 inch high sidewalls with removable foam walls.
Stake Wall - 12 inch high sidewalls / flexible drive over walls on all 4 sidewalls.

Available Liner:

Copolymer-2000 - 28 oz

Foam Wall Features:

Designed to capture leaks and spills from vehicles, oily equipment, tanks and drums.
Low profile 4 inch sidewalls.
Soft foam sidewall easily compresses for convenient loading and off-loading.
No setup required, simply unfold for quick deployment.
Folded units require minimal storage space.
Built-in handles help with transportation and placement.
5 year Manufacturer Warranty.

Foam Wall Plus Features:

Heavy duty version of the foam wall model designed for harsh conditions and chemical exposures.
Low profile 4 inch high sidewalls.
Removable foam walls which allows foam walls to be easily replaced.
Removable foam wall design reduces downtime.
Optional Custom colored foam supports for easy identification.
Easy storage / just remove foam walls and fold up the containment.

Stake Wall Model Features:

Stake wall features bendable and flexible sidewalls that can be driven over by vehicles on all 4 sidewalls.
Vertical sidewall supports every 12 inches.
Each support features built-in "living hinge" at its base which allows sidewalls to collapse in either direction.
Collapsed sidewalls spring back into position automatically.
Portable Design / just fold up and go.
No setup required / just unfold and the sidewalls automatically spring into position.
Higher 12 inch sidewalls support larger containment capacity.

Spec Sheets:

Containment Berm Model Comparison:

Berm Model Comparison Sheet

Berm Chemical Compatibility / Maintenance:

Spill Berm Chemical Guide

Available Sizes & Dimensions:

Foam Wall Model / 4 inch side wall height:

3'x3' - 22 gallon containment capacity / 20 lbs (copoly)
4'x4' - 39 gallon containment capacity / 22 lbs (copoly)
4'x6' - 59 gallon containment capacity / 27 lbs (copoly)
8'x8' - 159 gallon containment capacity / 45 lbs (copoly)
10'x10' - 249 gallon containment capacity / 61 lbs (copoly)
10'x20' - 498 gallon containment capacity / 101 lbs (copoly)
10'x30' - 748 gallon containment capacity / 137 lbs (copoly)
10'x40' - 997 gallon containment capacity / 177 lbs (copoly)
10'x50' - 1,246 gallon containment capacity / 217 lbs (copoly)
12'x12' - 359 gallon containment capacity / 82 lbs (copoly)
12'x16' - 478 gallon containment capacity / 97 lbs (copoly)
12'x20' - 598 gallon containment capacity / 116 lbs (copoly)
12'x30' - 897 gallon containment capacity / 159 lbs (copoly)
12'x35' - 1,047 gallon containment capacity / 184 lbs (copoly)
12'x40' - 1,196 gallon containment capacity / 203 lbs (copoly)
12'x50' - 1,496 gallon containment capacity / 249 lbs (copoly)
12'x60' - 1,795 gallon containment capacity / 293 lbs (copoly)
12'x72' - 2,154 gallon containment capacity / 248 lbs (copoly)
15'x15' - 561 gallon containment capacity / 104 lbs (copoly)
15'x20' - 748 gallon containment capacity / 132 lbs (copoly)
15'x30' - 1,122 gallon containment capacity / 182 lbs (copoly)
15'x40' - 1,496 gallon containment capacity / 232 lbs (copoly)
15'x50' - 1,870 gallon containment capacity / 281 lbs (copoly)
15'x66' - 2,468 gallon containment capacity / 288 lbs (copoly)
15'x72' - 2,692 gallon containment capacity / 292 lbs (copoly)

Foam Wall Plus Model / 4 inch side wall height:

4'x4' - 39 gallon containment capacity / 17 lbs (copoly)
10'x10' - 249 gallon containment capacity / 51 lbs (copoly)
10'x20' - 498 gallon containment capacity / 85 lbs (copoly)
10'x30' - 748 gallon containment capacity / 119 lbs (copoly)
10'x50' - 1,246 gallon containment capacity / 188 lbs (copoly)
12'x20' - 598 gallon containment capacity / 188 lbs (copoly)
12'x30' - 897 gallon containment capacity / 139 lbs (copoly)
12'x50' - 1,496 gallon containment capacity / 215 lbs (copoly)

Rapid Rise Model / 12 inch side wall height:

4'x6' - 179 gallon containment capacity / 27 lbs (copoly)
6'x6' - 269 gallon containment capacity / 35 lbs (copoly)
10'x10' - 748 gallon containment capacity / 63 lbs (copoly)
12'x12' - 1,077 gallon containment capacity / 85 lbs (copoly)
12'x26' - 2,333 gallon containment capacity / 149 lbs (copoly)
12'x30' - 2,692 gallon containment capacity / 171 lbs (copoly)
12'x40' - 2,590 gallon containment capacity / 218 lbs (copoly)
12'x50' - 4,488 gallon containment capacity / 266 lbs (copoly)
12'x60' - 5,385 gallon containment capacity / 293 lbs (copoly)
12'x72' - 6,462 gallon containment capacity / 370 lbs (copoly)
15'x15' - 1,683 gallon containment capacity / 115 lbs (copoly)
15'x20' - 2,244 gallon containment capacity / 141 lbs (copoly)
15'x30' - 3,366 gallon containment capacity / 195 lbs (copoly)
15'x40' - 4,488 gallon containment capacity / 248 lbs (copoly)
15'x50' - 5,610 gallon containment capacity / 278 lbs (copoly)
15'x60' - 6,732 gallon containment capacity / 356 lbs (copoly)
15'x66' - 7,405 gallon containment capacity / 357 lbs (copoly)
15'x72' - 8,078 gallon containment capacity / 420 lbs (copoly)

Ultimate Model / 2 side drive over / 12 inch side wall height:

4'x6' - 179 gallon containment capacity / 72 lbs (copoly)
10'x10' - 748 gallon containment capacity / 176 lbs (copoly)
12'x26' - 2,333 gallon containment capacity / 189 lbs (copoly)
12'x30' - 2,692 gallon containment capacity / 256 lbs (copoly)
12'x36' - 3,231 gallon containment capacity / 283 lbs (copoly)
12'x60' - 5,385 gallon containment capacity / 297 lbs (copoly)
14'x54' - 5,655 gallon containment capacity / 368 lbs (copoly)
14'x56' - 5,864 gallon containment capacity / 408 lbs (copoly)
15'x50' - 5,610 gallon containment capacity / 326 lbs (copoly)
15'x66' - 7,405 gallon containment capacity / 405 lbs (copoly)

Stake Wall Model / 4 side drive over / 12 inch side wall height:

4'x6' - 179 gallon containment capacity / 37 lbs (copoly)
6'x6' - 269 gallon containment capacity / 46 lbs (copoly)
10'x10' - 249 gallon containment capacity / 87 lbs (copoly)
10'x20' - 498 gallon containment capacity / 150 lbs (copoly)
10'x30' - 748 gallon containment capacity / 208 lbs (copoly)
10'x40' - 997 gallon containment capacity / 266 lbs (copoly)
10'x50' - 1,246 gallon containment capacity / 325 lbs (copoly)
12'x12' - 359 gallon containment capacity / 113 lbs (copoly)
12'x20' - 598 gallon containment capacity / 162 lbs (copoly)
12'x30' - 897 gallon containment capacity / 223 lbs (copoly)
12'x40' - 1,196 gallon containment capacity / 284 lbs (copoly)
12'x50' - 1,496 gallon containment capacity / 345 lbs (copoly)
12'x60' - 1,795 gallon containment capacity / 406 lbs (copoly)
15'x15' - 561 gallon containment capacity / 151 lbs (copoly)
15'x20' - 748 gallon containment capacity / 184 lbs (copoly)
15'x30' - 1,122 gallon containment capacity / 250 lbs (copoly)
15'x40' - 1,496 gallon containment capacity / 317 lbs (copoly)
15'x50' - 1,870 gallon containment capacity / 363 lbs (copoly)
15'x66' - 2,468 gallon containment capacity / 464 lbs (copoly)

Other Options:

Browse other drive over containment berms or all Ultratech Spill Containment.

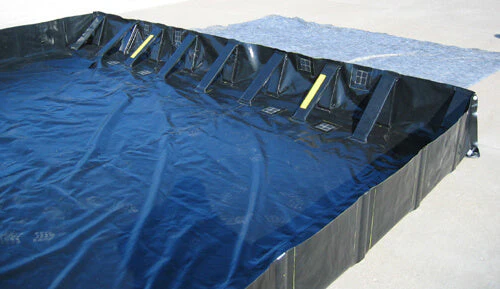

Fuel Tank Spill Containment
